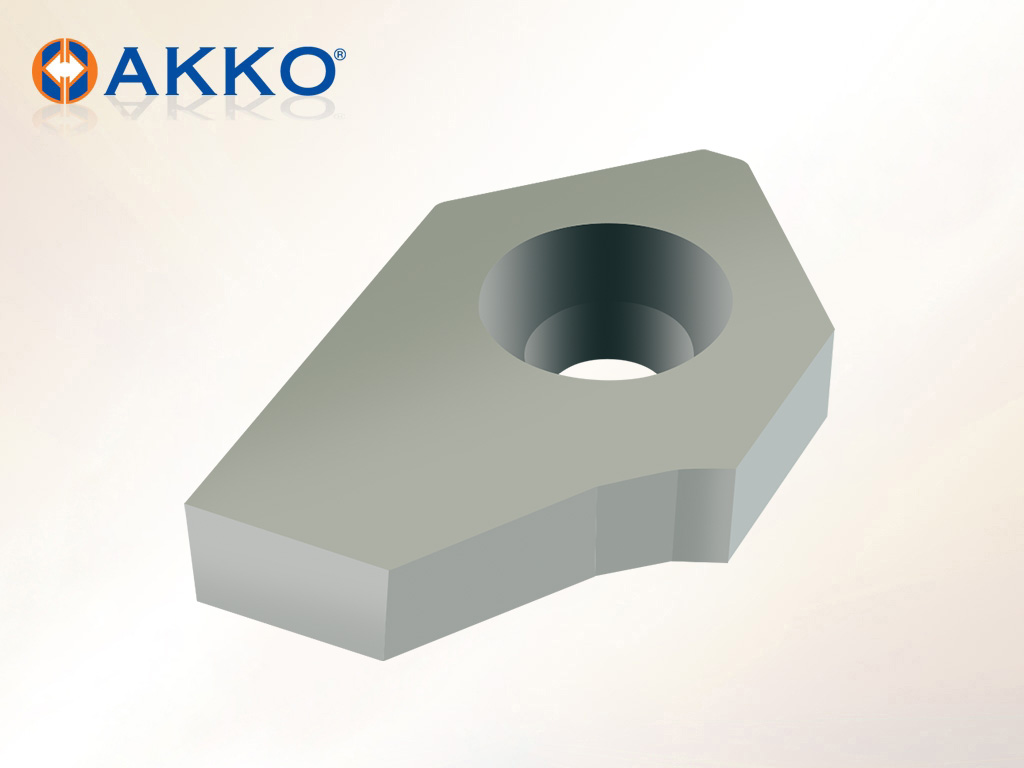

B11013-B

Log in for price

CORNER RADIUS (R)
- 1.50
SEAT ANGLE (Sº)
- 45º
SEAT WIDTH (SW)
- 1.3
SIDE CLERANCE ANGLE (α)
- 3°
THROAT ANGLE (THº)
- 60º
TOP ANGLE (Tº)
- 30º
TOP WIDTH (TW)
- 1
TOTAL LENGTH (L)
- 15.10
TOTAL WİDTH (A)
- 8.15

This combination does not exist.

Product Details

CORNER RADIUS (R)	SEAT ANGLE (Sº)	SEAT WIDTH (SW)	SIDE CLERANCE ANGLE (α)	THROAT ANGLE (THº)	TOP ANGLE (Tº)	TOP WIDTH (TW)	TOTAL LENGTH (L)	TOTAL WİDTH (A)
1.50	45º	1.3	3°	60º	30º	1	15.10	8.15
