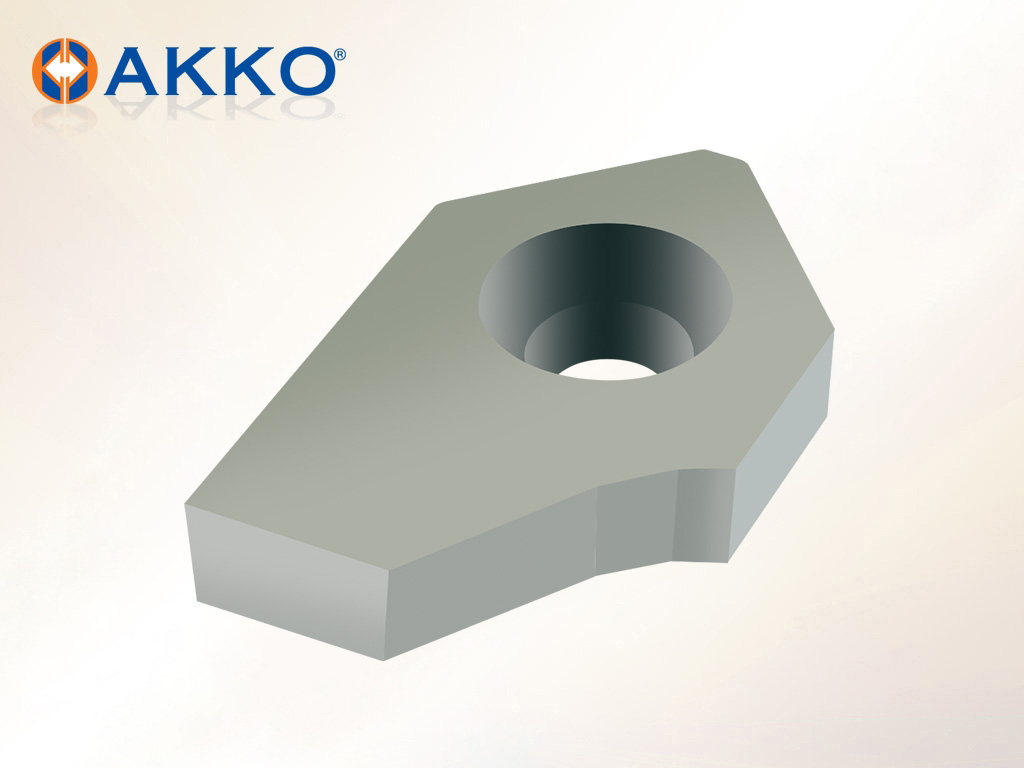

Product Details
| CORNER RADIUS (R) | SEAT ANGLE (Sº) | SEAT WIDTH (SW) | SIDE CLERANCE ANGLE (α) | THROAT ANGLE (THº) | TOP ANGLE (Tº) | TOP WIDTH (TW) | TOTAL LENGTH (L) | TOTAL WİDTH (A) |
|---|---|---|---|---|---|---|---|---|
| 1.50 | 45º | 1.3 | 3° | 60º | 30º | 1 | 15.10 | 8.15 |
| CORNER RADIUS (R) | SEAT ANGLE (Sº) | SEAT WIDTH (SW) | SIDE CLERANCE ANGLE (α) | THROAT ANGLE (THº) | TOP ANGLE (Tº) | TOP WIDTH (TW) | TOTAL LENGTH (L) | TOTAL WİDTH (A) |
|---|---|---|---|---|---|---|---|---|
| 1.50 | 45º | 1.3 | 3° | 60º | 30º | 1 | 15.10 | 8.15 |
